Flowverses

In this guide you publish a flow so that other people can install it and run it by name, and install somebody else's. You put a review flow in a repository of its own, test it, tag a release, list it in a flowverse, install it, run it, and call it from another flow.

Publish a flow when it is useful beyond the project you wrote it in. Install one when somebody else has written the flow you need.

Before you start

• A flow of your own, tested: Your first flow and Testing a flow.
• A public GitHub repository you can push to. The official flowverse lists flows on GitHub; a flowverse of your own can name any URL git clone takes, a path on this machine included.

How it works

A flowverse is an index: a git repository of manifests, one per release of a flow. It holds no code. Each manifest says which repository the release lives in and the exact commit it is, the way winget-pkgs does for winget. The official one is humanfia/flowverse, and you can add your own.

An index lists a flow in one of two places:

Manifest	For	Called
flows/<flow>/<version>/flow.yaml	in the official flowverse, humanfia's own flows	<flow>
flows/<user>/<flow>/<version>/flow.yaml	everybody else's: <user> is the GitHub owner of the flow's repository, in lower case	<user>/<flow>

A directory of flows/ is one or the other, never both, and humanfia is never a <user>. A flowverse of your own is laid out the same way, except that a flow listed bare there may be anybody's.

A flow an index lists is a flow to install. Installing one copies that release, at its commit, into flowverses/<flowverse>/installed/[<user>/]<flow>/ under $HUMANIZE_HOME (default ~/.hmz), along with any flows it needs. What runs is what is built in, what you installed, and your own flows:

Place	Holds	Run as
built in	chat, ralph_loop, goal, flame_chase, stateful_ralph, continue_loop, rlar	rlar
official	the flows you installed from humanfia/flowverse	aot, you/review
a flowverse you added	the flows you installed from it	@yours/review, @yours/you/review
local	this project's .hmz/flows/	@local/review, or review
user	your ~/.hmz/flows/, for every project	@user/review, or review

Every place but official is named after an @. Anything starting with ., / or ~ is a path, and nothing else is.

hmz fetches every index in the background as it opens, and never touches what is installed. When an index lists a newer release of a flow you installed, the transcript says so once:

updates available: @yours/review 0.1.0 ↑ 0.2.0; update from /flow

hmz exec fetches nothing and installs nothing.

Example: publish a review flow

1. Lay out the repository

One repository per flow, named <flow>-flow by convention, with the flow in a directory named after it and everything else beside that directory:

review-flow/
├── review/                →  the flow: what is installed
│   ├── __init__.py
│   └── skills/            →  skills its agents are given, if any
├── tests/
│   └── test_review.py     →  not installed
├── README.md
└── LICENSE

2. Write the flow

# review/__init__.py
from hmz.flows import (
    Agent,
    AgentCollection,
    EnvCollection,
    FlowContext,
    FlowParams,
    LocalEnv,
    flow,
)


class Agents(AgentCollection):
    reviewer: Agent


class Envs(EnvCollection):
    workspace: LocalEnv  # ①


@flow(agents=Agents, envs=Envs, params=FlowParams)
async def review(  # ②
    task: str, *, agents: Agents, envs: Envs, params: FlowParams, ctx: FlowContext
) -> None:
    """Review the current diff and write the findings to REVIEW.md."""  # ③
    reviewer = agents["reviewer"]
    session = await reviewer.spawn()
    await reviewer.run(
        f"Write what is wrong with the diff to REVIEW.md.\n\n{task}",
        session=session,
        env=envs["workspace"],
    )

1. LocalEnv is the directory whoever runs the flow starts it in: their project, not your repository. An installed flow works where it is run.
2. The function is named after its directory, review in review/, so that review means it once it is installed.
3. The docstring's first line is what somebody sees beside the flow's name before they run anything, in /flow. Make it say what the flow does and what it writes.

3. Test it

The fake kit takes a flow by path as well as by name, so the repository tests its flow without installing it:

# tests/test_review.py
from hmz.sdk import fakes


async def test_review_asks_for_review_md() -> None:
    reviewer = fakes.FakeAgentDriver()  # ①

    await fakes.run_fake(
        "./review",  # ②
        "the payments module",
        agents={"reviewer": reviewer},
    )

    assert reviewer.prompts == [  # ③
        "Write what is wrong with the diff to REVIEW.md.\n\nthe payments module"
    ]

uvx --with hmz \
    --with pytest-asyncio pytest -q -o asyncio_mode=auto

.                                                                        [100%]
1 passed in 0.09s

1. A fake reviewer answers "ok" and records what it was asked.
2. "./review" is a path, relative to the repository root pytest runs in.
3. The prompt carries the fixed instruction and then the task, in that order.

Run the tests in CI has the pyproject.toml and the workflow that run this on every push. hmz exec -f ./review … runs it for real, from the same directory.

4. Tag a release

Push the repository, then tag a SemVer version and push the tag:

cd review-flow
git init -q -b main && git add -A && git commit -qm "a review flow"
git remote add origin git@github.com:you/review-flow.git
git push -u origin main
git tag v0.1.0 && git push origin v0.1.0
git rev-parse 'v0.1.0^{commit}'   # the commit a manifest pins

The release runs at once, by URL, with nothing installed:

hmz exec -f 'git+https://github.com/you/review-flow@v0.1.0#review' \
    -a reviewer=claude/claude-sonnet-5-5:high -p budget.cost=1 "the calc module"

5. List it

A release is listed by its manifest. In the official flowverse it goes under your GitHub user, flows/<your-github-user>/review/0.1.0/flow.yaml; in a flowverse of your own it can also go bare, flows/review/0.1.0/flow.yaml:

name: review
version: 0.1.0
description: Review the current diff and write the findings to REVIEW.md.
repo: you/review-flow
ref: v0.1.0
commit: 4b1f0c9e2d7a83f5c6e0b9a1d2c3e4f5a6b7c8d9
subdir: review
license: Apache-2.0

Key
name	The flow: the <flow> directory it is in, [a-z][a-z0-9_]*.
version	The release, as SemVer 2.0.0: the <version> directory it is in.
description	One line, shown beside the flow before anybody installs it.
repo	Where the release lives: owner/repo on GitHub, or any URL git fetches (https://, ssh://, file://…). Under flows/<user>/, a repository on GitHub must be <user>'s.
ref	The tag or branch it was cut from, for whoever reads the index.
commit	What ref resolved to, all 40 hex digits. This is what is installed.
subdir	The directory holding the flow: its __init__.py, or <name>.py. Left out, the repository's root.
license	Its licence, as SPDX names it.
dependencies	Optional: other flows of the same flowverse it calls, each with a version range. See Dependencies.

Keys Humanize does not know are ignored, so an index written for a later Humanize still lists.

In the official flowverse. Fork humanfia/flowverse, add the manifest at flows/<your-github-user>/review/0.1.0/flow.yaml, and open a pull request. Only humanfia's own flows are listed bare there. Its CONTRIBUTING.md is the whole guide: naming, what CI checks, review, new versions and withdrawals. Once it is merged, every hmz lists you/review under official after its next fetch, and it installs and runs as you/review.

New versions merge themselves. A pull request to the official flowverse is merged without waiting for a maintainer when all of these hold:

• it only adds flows/…/<version>/flow.yaml files: nothing modified, deleted or renamed, and nothing else;
• each is a flow already published there, at a version greater than every published one;
• each manifest is the latest published one's in every key but version, ref and commit;
• every check passed on the pull request's head commit, a real install with hmz included.

Anything else, a new flow included, waits for review.

In a flowverse of your own. A repository laid out the same way, for flows you keep to yourself or want to try before the pull request is merged:

mkdir -p my-flowverse/flows/review/0.1.0 && cd my-flowverse
$EDITOR flows/review/0.1.0/flow.yaml     # the manifest above
git init -q -b main && git add -A && git commit -qm "review 0.1.0"
git remote add origin git@github.com:you/my-flowverse.git
git push -u origin main

The rest of this example uses this one, which lists review bare.

6. Add it, and install the flow

At the prompt

/flow → Install more… → Add flowverse…
  repository   you/my-flowverse
  name         yours
then  yours › review › Install 0.1.0

From a script

from hmz.sdk import Hmz

verses = Hmz().verses
verses.add("you/my-flowverse", "yours")
for one in verses.install("@yours/review"):
    print(one.called, one.version, one.at)

At the prompt, /flow opens on what is installed, and Install more… goes to the flowverses. Add flowverse… asks for the repository, as a URL or owner/repo for one on GitHub, and a name to keep it under; leave the name blank for the repository's own. Confirming clones its index. enter on yours lists its flows, enter on review its releases, and Install 0.1.0 fetches you/review-flow at the commit and installs it, at once. From a script, add returns once the index is cloned, and install once the flow is in place:

@yours/review 0.1.0 /home/you/.hmz/flowverses/yours/installed/review

7. Run it

At the prompt

$@yours/review the calc module

hmz exec

hmz exec -f @yours/review -a reviewer=claude/claude-sonnet-5-5:high -p budget.cost=1 \
    "the calc module"

A real run, in a project whose add was changed to subtract:

● reviewer is working
● Bash(cd /home/you/calc && git diff && cat calc.py && ls)
● Bash(cd /home/you/calc && cat check.py)
● Write(/home/you/calc/REVIEW.md)
● I wrote the review to `/home/you/calc/REVIEW.md`. The diff changes `add(a, b)` in `calc.py` from `a + b` to `a - b`, so `add` now subtracts. …
✻ input 8 · output 563 · cache_read 61.5k · cache_write 5.9k · $0.03 · claude-sonnet-5-5 · reviewer
…
✻ Worked for 8s · reviewer

The first time at the prompt, /flow opens on the flow to ask what runs reviewer and what the run may spend, and starts it once you save. Anybody else adds you/my-flowverse and installs review the same way, under whatever name they chose for it.

Check it worked

• It is installed. /flow lists review under yours, with 0.1.0 at the far end of its row.
• It ran where you are. The review is in the project you ran it in: cat REVIEW.md.
• It runs by URL. With nothing installed, the same release runs from its repository: -f 'git+https://github.com/you/review-flow@v0.1.0#review'.

What goes in the repository

Rule
One flow per repository	Its variants included: see below
The flow in a directory named after it	review/, holding the __init__.py with the async function marked @flow. Only this directory is installed, so the repository can hold tests, a README and a pyproject.toml beside it
Or a single .py file	review.py, for a flow with nothing to bring along. It is installed as a directory of its own
A name Humanize does not ship	[a-z][a-z0-9_]*, and, listed bare, not chat, ralph_loop, goal, flame_chase, stateful_ralph, continue_loop or rlar: a manifest naming one of those is skipped. Under a user any name goes: you/chat is yours
A name starting with _	Is not a flow

Variants are subflows of one module. Two takes on one flow go in one directory as two @flows, released together, not in two repositories or two manifests. The one named after the directory is review, and each other is review:<name>, such as review:quick. flame_chasoid has no flow named after it, only its variants: flame_chasoid:parallel, flame_chasoid:parallel_git_pr, flame_chasoid:fixed_interrupt and the two flame_chasoid:agent_cleanup_* flows are one release of humanfia/flame-chasoid-flows.

Keep a flow's own code in its own directory. Besides installed packages, a flow can import only what sits beside its __init__.py, and that directory is all that is installed, so a _shared.py at the top of the repository is not there to import: ModuleNotFoundError: No module named '_shared'. Put the helpers in a package named after the flow. Every flow a run loads shares one set of module names, so a generic name such as utils clashes with the next flow that picks it.

review/
├── __init__.py            from _review import prompts
├── _review/               this flow's helpers
│   ├── __init__.py
│   └── prompts.py
└── skills/                skills its agents are given
    └── review-notes/SKILL.md

See Skills for what goes in skills/.

Write the README for somebody deciding whether to trust it. For each flow, say:

• the roles it drives, and what each is for;
• which CLIs it runs on, where a role asks for something only some serve, such as a hook or a goal. hmz exec refuses the others before the first turn, but the README saves somebody the attempt;
• its params, and what each does;
• what it writes: files, branches, commits, pushes;
• the hmz exec line that starts it, word for word.

Dependencies

A flow that calls another flow of the same flowverse names it in its manifest as that flowverse lists it, bare or <user>/<flow>, with the versions it works with:

dependencies:
  humanize1: ">=0.1.0,<0.2.0"
  alice/kernel: ">=1.2.0"

A range is comparisons (<, <=, >, >=, ==, !=) joined by ,, all of which must hold; a bare version means ==. Installing the flow installs the newest release of each dependency in range, a prerelease only where nothing else is, unless one already installed is in range. Humanize refuses, saying why, an install with a cycle in it, one whose ranges no release satisfies, and one that would take another installed flow's dependency out of its range. Uninstalling a flow that another installed flow needs is refused too. The flows built into Humanize are always there: never list them.

A flow installed from a flowverse loads the others installed from it by the same names: load("humanize1:rlcr") inside an installed recursive_lean_prover finds the humanize1 installed with it, and load("alice/kernel") the alice/kernel -- even where a flow of your own is called humanize1 too.

Managing flowverses

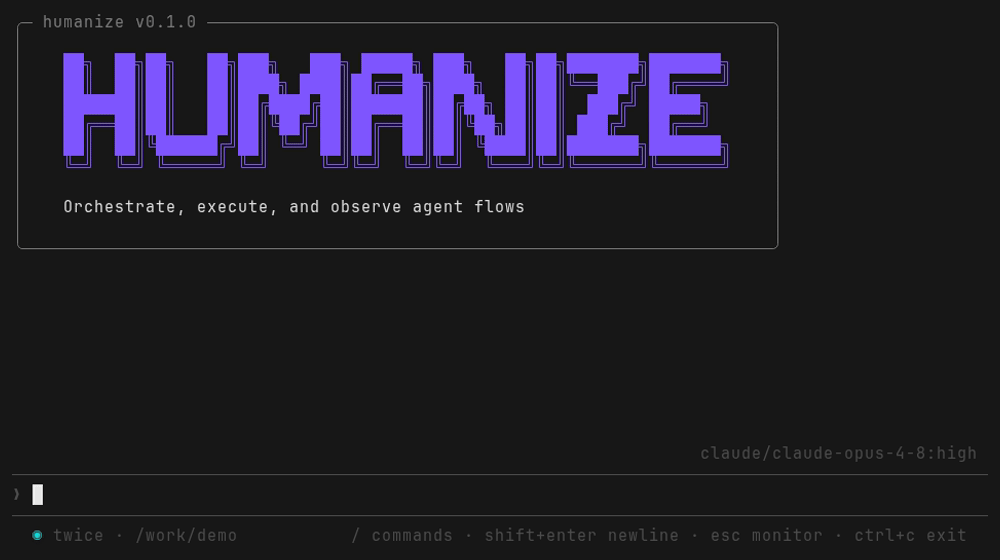

/flow is where flows are installed, as well as chosen. It opens on Installed; ← goes out to its first screen, with Installed and Flowverses as two cards:

hmz

/flow: from Installed out to its first screen, into Flowverses and into official, which lists six flows at their newest release; into aot, whose releases are 0.2.0 and 0.1.0, enter on 0.1.0 installs it; back on official, aot reads ✔ 0.1.0 ↑ 0.2.0

Page	Shows	Buttons
Installed	built-in flows, then every flow by where it came from, each with its release and ↑ 0.2.0 where a newer one is listed	Install more…, Update, Uninstall, Copy here, Search…, Save

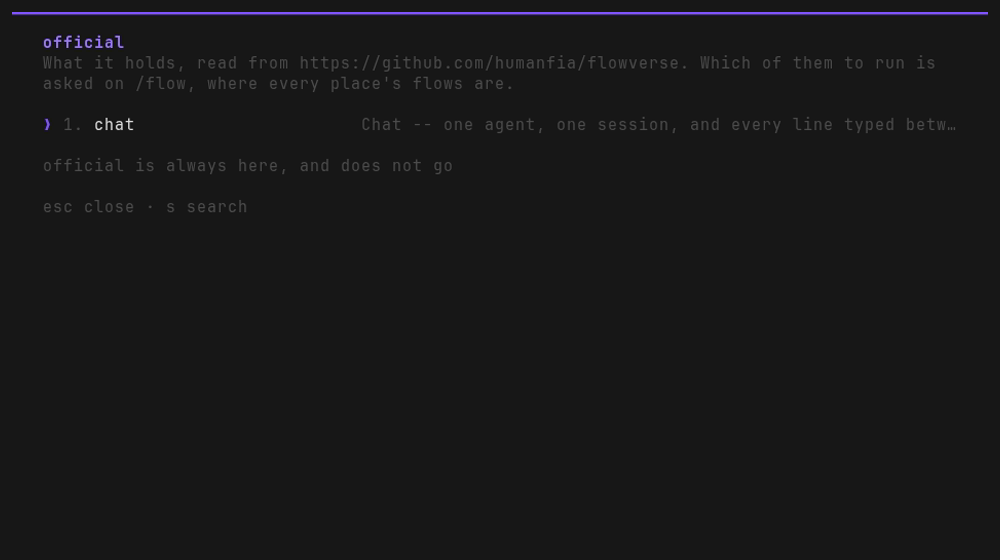

Flowverses	a card per index: fetched, not fetched or edited, or no git origin for a directory there that is not a clone; its URL; how many flows it lists, how many are installed, how many have updates	Add flowverse…, Fetch again, Remove, Search…
a flowverse	each flow it lists, with its newest release, ✔ 0.1.0 installed or ✔ 0.1.0 ↑ 0.2.0; manifests that did not read, under the list	Install 0.1.0 or Update to 0.2.0, Uninstall, Fetch again, Search…
a flow	its releases, newest first: prereleases marked, the installed one ticked, each with its ref, commit, licence and what it needs	Install 0.1.0 or Switch to 0.1.0, Uninstall, Search…

Installing, updating, fetching and removing happen at once, and are said under the list and, once the menu closes, in the transcript. Remove asks first, and takes away the flowverse's index and every flow installed from it. official cannot be removed.

From a script, Hmz().verses does the same with nothing open:

from hmz.sdk import Hmz

verses = Hmz().verses
verses.add("you/my-flowverse", "yours")   # clone its index
verses.index("yours").flows()             # what it lists: ['review']
verses.install("@yours/review", "0.1.0")  # a release, and what it needs
verses.install("alice/kernel")            # one of official's, listed under alice
verses.updates()                          # installed flows with a newer release listed
verses.uninstall("@yours/review")
verses.fetch("yours")                     # its index, again
verses.remove("yours")                    # its index, and every flow installed from it

A flow installed from a script can be run with -f at once.

To change somebody else's flow, walk to it on Installed and press Copy here, or call Hmz().flows.fork("@yours/review"). Either copies it into this project's .hmz/flows/review, where your edits are yours to keep, and from then on review in that project means your copy, @local/review. An installed flow is replaced whole by the next update.

Installing a flow is trusting its repository with this machine

A flow is Python. Once it is installed, Humanize imports it whenever it lists flows, and every agent it drives runs with approvals bypassed. Review in the official flowverse lowers the risk; it does not remove it. Adding a flowverse runs nothing: an index holds no code. Read Security first.

What a flow is called

You type	Runs
rlar	the nearest flow called rlar: this project's or yours if you have one, else the one built in
review	the nearest flow called review: this project's, yours, or the one installed from official
you/review	review installed from official's flows/you/, and nothing else
@yours/review	review installed from the flowverse you added as yours, and nothing else
@yours/you/review	the same, for one it lists under flows/you/
@local/review	review in this project's .hmz/flows
@user/review	review in your ~/.hmz/flows, for every project
./review, /abs/review, ~/review	the flow at that path: a path starts with ., / or ~
git+<url>[@<rev>][#<subdir>][:<name>]	the flow in <subdir> of a repository (its root when left out), at <rev> if given, fetched for the run

A bare name is looked for nearest first: this project's .hmz/flows, then ~/.hmz/flows, then the rest. So a flow of your own can stand in for one of Humanize's by taking its name: .hmz/flows/chat/ is what -f chat runs in that project. A name nothing installed answers to is refused, saying where it could be installed from. you/review and @yours/review name one place, so nothing can stand in for them.

Calling it from another flow

A flow can call another by the same names. A flow installed from a flowverse calls the others installed from it as that flowverse lists them, as review, you/review or humanize1:gen-plan: list them under dependencies so that they are installed with it. Any release of any repository is called by URL, whether or not anybody has installed it:

from hmz.flows import load

review = load("git+https://github.com/you/review-flow@v0.1.0#review")

The @v0.1.0 holds the caller to one version of the flow: a tag, a branch or a commit. This is a reason to publish two small flows rather than one large one: another weaver can call a phase, but can only run a pipeline whole.

Variations

Run without installing. -f 'git+https://github.com/you/review-flow@v0.1.0#review' fetches that release for the run and installs nothing. A ref with no # is the flow at the repository's root.

Pin a version. An install is pinned already: it is the manifest's commit, whatever later happens to the tag. Choose another release on the flow's page to switch to it.

Check your own flowverse as the official one is checked. Copy schema/ and .github/ from humanfia/flowverse into it.

Start from somebody else's. Copy here brings their flow into your project. Change it, then move the directory into a repository of its own to publish it.

Pitfalls

• Not installed. A flow an index lists runs only once it is installed, and hmz exec installs nothing:

  hmz exec: error: @yours/review: not installed -- install it from /flow (flowverse yours)

  Install it from /flow, or in CI call Hmz().verses.install("@yours/review") first.

• Not fetched yet. On a fresh machine no index has been fetched, so a name only an index could answer to is refused:

  hmz exec: error: review: the official flowverse has not been fetched yet -- fetch it from /flow

  Open hmz once, or in CI call Hmz().verses.fetch("official") first.

• A manifest that does not read is skipped. A wrong key, a short commit, a name or version that is not its directory's, a built-in flow's name listed bare, or a repository on GitHub that is not the <user>'s it is listed under: the flowverse's page names it under the list, with why, and lists the rest.

• Names from before the @. local/review and yours/review were how this project's flows and a flowverse's were named. Said that way now, they are refused saying how they are said:

  hmz exec: error: yours/review: a flow of yours is called @yours/review now

• A path is ./, / or ~. A relative path without its ./ is a name now:

  hmz exec: error: flows/review: a path starts with ./, / or ~, as ./flows/review does

• Do nothing at import time beyond defining things: no network calls, no files written. Humanize imports every flow it lists, in /flow and as $ completes a name, so a flow that acts on import acts for somebody who was only looking.

• Edits inside an installed flow go away at the next update. Copy the flow here first.

• A name that is not there is refused before anything runs: hmz exec: error: @yours/nope: no flow is called '@yours/nope'.

Next steps

• Flows: every flow Humanize offers, with the shape of each drawn
• humanfia/flowverse's CONTRIBUTING.md: listing a flow in the official flowverse
• Testing a flow
• A flow that calls a flow
• Reference › Flows › Flowverses
• SDK reference › Flowverses
